Settore Legno

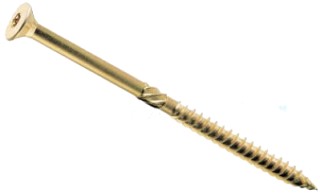

Viti truciolari svasanti



Questa vite è espressamente indicata su carpenteria in legno di grande dimensioni (arredo montano, coperture industriali, gazebo). Vite di nuova concezione dotata di alette autosvasanti posizionate direttamente sul gambo per agevolare notevolmente l’inserimento della parte liscia non filettata. I vantaggi che ne scaturiscono consistono nella maggior durata delle batterie ed il minor dispendio di energie umane. Utilizzabile con rondelle per viti ed inserti (uno per confezione).

Perni per barilotto

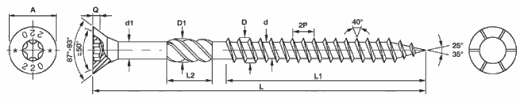

  D - mm L - mm L1 - mm TX Confezione / Packaging
SA-VS-45050 4,5 50 30 T25 200
SA-VS-45060 4,5 60 30 T25 200
SA-VS-45070 4,5 70 42 T25 200
SA-VS-45080 4,5 80 42 T25 200
SA-VS-45090 4,5 90 42 T25 200
SA-VS-45100 4,5 100 60 T25 200
SA-VS-50060 5,0 60 30 T25 200
SA-VS-50070 5,0 70 42 T25 200
SA-VS-50080 5,0 80 42 T25 200
SA-VS-50090 5,0 90 42 T25 100
SA-VS-50100 5,0 100 60 T25 100
SA-VS-50110 5,0 110 60 T25 100
SA-VS-50120 5,0 120 60 T25 100
SA-VS-50070 6,0 70 42 T30 200
SA-VS-60080 6,0 80 42 T30 200
SA-VS-60090 6,0 90 42 T30 100
SA-VS-60100 6,0 100 60 T30 100
SA-VS-60110 6,0 110 60 T30 100
SA-VS-60120 6,0 120 60 T30 100
SA-VS-60130 6,0 130 75 T30 100
SA-VS-60140 6,0 140 75 T30 100
SA-VS-60150 6,0 150 75 T30 100
SA-VS-60160 6,0 160 75 T30 100
SA-VS-60180 6,0 180 75 T30 100
SA-VS-60200 6,0 200 75 T30 100
SA-VS-60220 6,0 220 75 T30 100
SA-VS-60240 6,0 240 75 T30 100
SA-VS-60260 6,0 260 75 T30 100
SA-VS-60280 6,0 280 75 T30 100
SA-VS-80080 8,0 80 50 T40 100
SA-VS-80100 8,0 100 50 T40 100
SA-VS-80120 8,0 120 80 T40 100
SA-VS-80140 8,0 140 80 T40 100
SA-VS-80160 8,0 160 80 T40 100
SA-VS-80180 8,0 180 80 T40 100
SA-VS-80200 8,0 200 80 T40 100
SA-VS-80220 8,0 220 80 T40 100
SA-VS-80240 8,0 240 80 T40 100
SA-VS-80260 8,0 260 80 T40 100
SA-VS-80280 8,0 280 80 T40 100
SA-VS-80300 8,0 300 80 T40 100
SA-VS-80320 8,0 320 80 T40 50
SA-VS-80340 8,0 340 80 T40 50
SA-VS-80360 8,0 360 80 T40 50
SA-VS-80380 8,0 380 80 T40 50
SA-VS-80400 8,0 400 80 T40 50
SA-VS-00100 10,0 100 50 T40 50
SA-VS-00120 10,0 120 80 T40 50
SA-VS-00140 10,0 140 80 T40 50
SA-VS-00160 10,0 160 80 T40 50
SA-VS-00180 10,0 180 80 T40 50
SA-VS-00200 10,0 200 80 T40 50
SA-VS-00220 10,0 220 80 T40 50
SA-VS-00240 10,0 240 80 T40 50
SA-VS-00260 10,0 260 80 T40 50
SA-VS-00280 10,0 280 80 T40 50
SA-VS-00300 10,0 300 80 T40 50
SA-VS-00320 10,0 320 80 T40 50
SA-VS-00340 10,0 340 80 T40 50
SA-VS-00360 10,0 360 80 T40 50
SA-VS-00380 10,0 380 80 T40 50
SA-VS-00400 10,0 400 80 T40 50
